Worm Iav Tsav

Pawg Saib Xyuas

Worm gear motors muab lub tshuab hluav taws xob nrog cov cab cab kom txo qis thiab txoj cai - lub zog xa mus. Lawv yog siv nyob rau hauv industrial machinery qhov twg qhov yuav tsum tau tso zis ceev, torque, mounting kev npaj, thiab muaj nyob rau installation yuav tsum tau sib phim rau lub tsav system.
Lub gearbox siv cov cab cab thiab cov cab cab kom txo cov kev sib hloov ceev thiab xa cov torque. Nyob ntawm tus qauv tsim thiab kev ua haujlwm, cov cab iav tsav tuaj yeem muab cov ntim ntim thiab tiv thaiv rov qab- tsav tsheb. Kev ua tau zoo tiag tiag, thauj khoom- tuav tus cwj pwm, thiab lub peev xwm thermal yog nyob ntawm cov qauv xaiv thiab kev ua haujlwm.

Ntsiab nta

Txoj cai -Angle Transmission

Cov cab iav kev npaj hloov pauv cov kev taw qhia ntawm lub zog xa mus, uas tuaj yeem pab ua kom haum rau lub tshuab layouts nrog txwv qhov chaw teeb tsa.

Txo ceev

Cov iav sib txawv tso cai rau qhov tso zis ceev kom phim rau cov khoom siv tsav. Muaj qhov sib piv nyob ntawm seb lub gearbox series thiab kev teeb tsa.

Integrated Drive Assembly

Ua ke lub cev muaj zog thiab gearbox muab ib qho chaw tsav tsheb rau kev teeb tsa rau hauv cov tshuab sib xws.

Motor thiab Gearbox Options

Nyob ntawm cov khoom series, configurations tej zaum yuav muaj xws li txawv motor hom, gear ratios, tso zis shafts, mounting kev npaj, thiab hluav taws xob specifications.

Load thiab Thermal Considerations

Tso cai tso zis torque thiab lub sij hawm ua hauj lwm nyob ntawm seb lub gearbox tsim, load yam ntxwv, lubrication, ambient kub, thiab mounting tej yam kev mob. Cov yam ntxwv no yuav tsum tau kuaj xyuas thaum xaiv.

Rov qab-Kev ntsuas tsav tsheb

Cov cab cab iav tsis tuaj yeem muab kev nyab xeeb - ntsuas tuav ua haujlwm. Rov qab- tus cwj pwm tsav tsheb yuav tsum tau lees paub rau tus qauv thiab daim ntawv thov xaiv. Ib tug nres nres los yog lwm yam kev tuav tswj yuav tsum tau nyob rau hauv lub load txav muaj kev nyab xeeb.

Technical Specifications

Parameter	Standard Range	Customization Options
Lub zog nkag	0.06 kW - 15 kW	Kev cai windings, voltage adaptation
Tso zis Torque	4 Nm - 2,500 Nm	Reinforced gearing rau siab torque
Gear Ratios	5: 1 - 100: 1 (Ib zaug- theem) / Txog 5000: 1 (ob npaug- theem)	Custom intermediate ratios
Hom Tsav	AC induction (1-phase / 3-phase), DC txhuam, BLDC	Servo flange mounts, IEC / NEMA ntas
Khoom siv tsev	Tuag-Ntaus Txhuas Alloy (Npaj 025–090), Cam khwb cia hlau (Npaj 110–150)	Epoxy txheej, npib tsib xee plating
Cov khoom siv iav	Bronze Alloy (CuSn12Ni2) ntawm hardened steel cab ncej (20CrMnTi, 56–62 HRC)	Kev cai bronze formulations
Kev ntsuas IP	IP54 / IP55	IP65, IP66, IP67 nrog ob - di ncauj roj foob
Kev khiav hauj lwm Temp.	-20℃rau +80 degree	High-temp lossis qis-temp hluavtaws roj

Yam khoom thiab kev teeb tsa

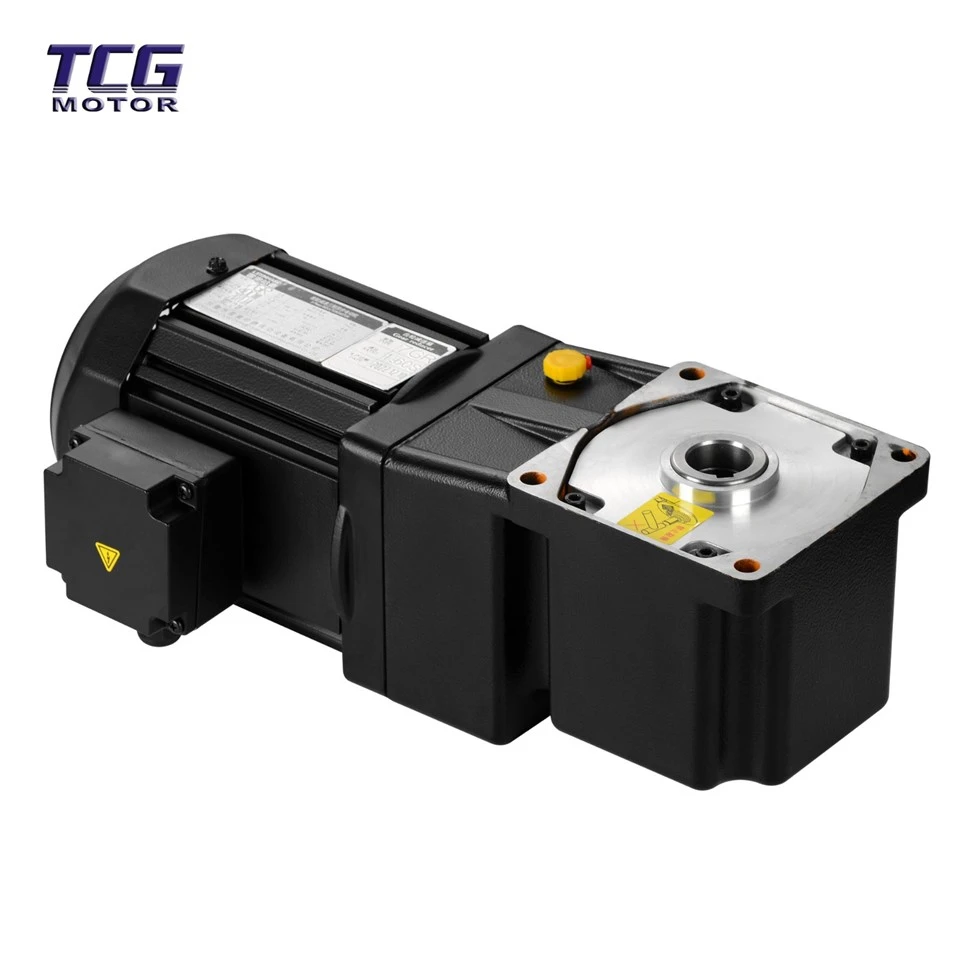

Tib -Stage Worm Gear Motors

Ib qho - theem teeb tsa siv cov cab cab thiab lub log cab kom txo tau ceev. Cov iav muaj qhov sib piv, qhov tso zis nrawm, qhov ntsuas lub zog, thiab qhov ntev mounting nyob ntawm qhov tshwj xeeb gearbox series.
Kev txiav txim siab txog kev xaiv: Yuav tsum tau txo qhov sib piv, tso zis torque, kev khiav hauj lwm ceev, mounting kev, thiab thermal rating.

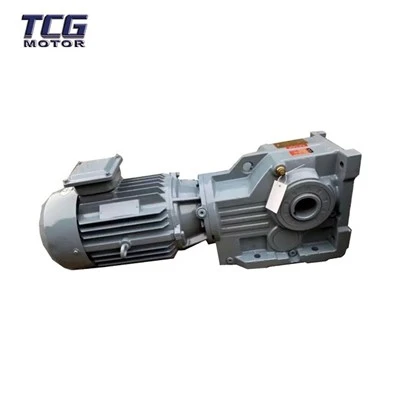

Ua ke los yog muab ob npaug rau -Txo cov cab iav Tsav

Qhov twg muaj, kev txo qis kev sib xyaw ua ke siv cov khoom siv ntxiv kom ua tiav qhov tso zis qis dua ib zaug - theem kev npaj. Qhov kev tsim kho thiab muaj qhov sib piv yuav tsum tau lees paub rau cov khoom lag luam cuam tshuam.
Cov kev xaiv zoo ib yam: Yuav tsum tau tso zis ceev, torque xav tau, efficiency, kub tsim, thiab muaj nyob rau installation.

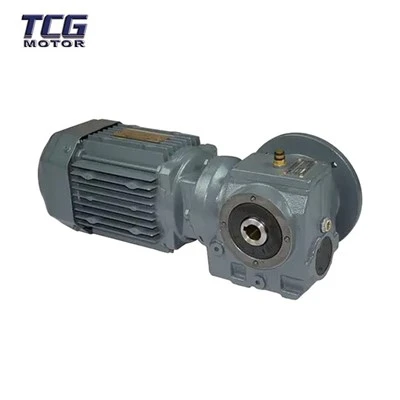

Helical -Ntaus iav Tsav Configurations

Qee lub tshuab tsav tsheb sib xyaw ua ke nrog lub iav helical nrog cov cab cab iav. Qhov kev npaj no yuav muab lwm qhov piv txwv thiab cov yam ntxwv ua tau zoo piv nrog cov kab cab -tsuas yog kev teeb tsa. Kev ua tau zoo yuav tsum raug txheeb xyuas siv tus qauv xaiv cov ntaub ntawv kev kawm.
Cov kev xaiv zoo ib yam: Tag nrho cov iav piv, tso zis torque, kev khiav hauj lwm ceev, efficiency yuav tsum, thiab mounting qhov ntev.
Tsuas yog suav nrog cov teeb tsa saum toj no uas yog ib feem ntawm cov khoom siv tiag tiag. Yog tias qhov kev teeb tsa tsis muaj, tshem tawm qhov sib thooj es tsis yog nthuav tawm nws raws li kev muab khoom.

Cov Ntsiab Cai Xaiv

Yuav tsum tau tso zis ceev thiab iav piv
Txiav txim siab lub hom phiaj tshuab ceev thiab muaj lub cev muaj zog ceev. Raws li kev xam ua ntej:
Iav piv=Lub cev muaj zog ÷ Yuav tsum tau tso zis ceev
Siv qhov tseeb ntsuas lub cev muaj zog thiab gearbox piv thaum lees paub qhov kev xaiv.

Yuav Tsum Tau Txais Torque
Rau kev kwv yees ua ntej, tso zis torque tuaj yeem suav tau raws li:
T (Nm)=9,550 × P_out (kW) ÷ n_out (rpm) × Service Factor
Ntawm no, P_out yog qhov yuav tsum tau siv tshuab hluav taws xob tso zis thiab n_out yog lub gearbox tso zis ceev. Kev xaiv zaum kawg yuav tsum suav rau qhov pib loads, acceleration, nres zaus, lub voj voog lub luag haujlwm, thiab cov chaw tsim khoom cov ntsuas torque thiab thermal txwv.

Lub luag haujlwm Cycle thiab kev ua haujlwm
Muab cov sijhawm ua haujlwm txhua hnub uas xav tau, pib- nres zaus, cov yam ntxwv thauj khoom, thiab qhov kub thiab txias. Cov kev xav tau ntawm kev pabcuam yuav tsum raug txiav txim siab siv cov xwm txheej ntawm daim ntawv thov thiab cov chaw tsim khoom xaiv cov kev taw qhia es tsis yog tus nqi universal.

Rov qab- Tsav tsheb thiab thauj khoom tuav
Yog tias daim ntawv thov yuav tsum tuav lub ncua lossis txav tau thaum lub hwj chim raug tshem tawm, paub meej tias lub gearbox rov qab - tus yam ntxwv tsav tsheb raws li cov xwm txheej cuam tshuam. Tsis txhob cia siab rau iav piv ib leeg los tsim tus kheej - xauv. Siv tus brake kom tsim nyog lossis lwm yam kev tuav pov hwm thaum xav tau los ntawm daim ntawv thov kev ntsuas kev pheej hmoo.

Radial thiab Axial Loads
Thaum lub tso zis ncej tsav lub pulley, siv, saw, los yog sprocket, xyuas lub resulting radial load thiab tej axial load tiv thaiv lub gearbox qhov tso cai txwv. Muab qhov chaw thauj khoom thiab kev ncua deb ntawm lub ntsej muag mounting yog tias yuav tsum tau kuaj xyuas engineering.

Mounting thiab Motor Compatibility
Paub meej tias qhov ntev ntawm lub mounting, ncej taub, ncej ntev, flange qhov ntev, thiab muaj qhov chaw nruab. Rau cov phiaj xwm hloov pauv, muab cov ntawv teev npe uas twb muaj lawm thiab kos duab qhov ntev qhov twg muaj.

Thermal Capacity thiab Lubrication
Worm iav tsav ua kom sov los ntawm kev sib txhuam. Paub meej tias cov kev khiav hauj lwm nyob rau hauv qhov ntsuas, mounting txoj hauj lwm, lubricant yuav tsum, thiab kub txwv rau tus qauv xaiv, tshwj xeeb tshaj yog nyob rau hauv tas li- daim ntawv thov.

Daim ntawv thov

Conveyor thiab Khoom Siv Khoom Siv:Tsav tsheb rau cov seem conveyor tsim nyog, hloov cov txheej txheem, thiab tuav cov cuab yeej uas txoj cai - lub kaum sab kis tau haum rau lub tshuab layout.

Ntim Machinery:Tsav mechanisms rau cov cuab yeej xav tau cov zis ceev ceev thiab sib haum mounting kev npaj.

Door thiab Gate Operators:Tsav tshuab qhov twg lub gearbox, lub cev muaj zog, thiab txhua yam yuav tsum tau nres ua tau raws li daim ntawv thov kev txav thiab thauj khoom - tuav cov cai.

Agricultural Khoom:Kev tsav tsheb tsim nyog rau kev pub noj, qhov cua, thiab kab hlau rhuav -cov cuab yeej tswj hwm, raws li ib puag ncig kev sib khi thiab kev thauj khoom.

Industrial Automation:Pab tsav tsheb thiab cov txheej txheem muab tso rau qhov twg qhov yuav tsum tau ua piv txwv, tso zis torque, ceev, thiab tswj txoj kev sib tw rau chav xaiv.

OEM thiab Customization

Muaj cov kev xaiv nyob ntawm seb qhov kev xaiv lub cev muaj zog thiab gearbox series. Cov chaw muaj peev xwm los tshuaj xyuas muaj xws li:

Ncej thiab Output Interface

Ncej txoj kab uas hla, ncej ntev, qhov ntev qhov tseem ceeb, hollow-txoj kev xaiv, thiab lwm yam tso zis interfaces uas txhawb.

Lub cev muaj zog thiab hluav taws xob Configuration

Hom lub cev muaj zog, ntsuas hluav taws xob, zaus, theem, thiab lwm yam kev xav tau hluav taws xob txhawb nqa los ntawm cov khoom lag luam.

Mounting Interfaces

Ko taw los yog flange mounting, mounting qhov ntev, thiab tau tshaj lub cev muaj zog adapters qhov twg muaj.

Braking thiab tawm tswv yim Cheebtsam

Nres los yog encoder kev koom ua ke qhov kev txhawb nqa los ntawm kev xaiv lub cev muaj zog thiab gearbox ua ke.

Environmental Requirements

Yuav tsum muaj kev tiv thaiv ingress, ambient kub, lubricant, thiab sealing tej yam kev mob rau kev tshuaj xyuas.

FAQ

Q: Kuv yuav xaiv qhov raug cab iav lub cev muaj zog li cas?

A: Pib nrog qhov yuav tsum tau tso zis ceev, tso zis torque, lub cev muaj zog mov, lub voj voog lub luag haujlwm, thiab qhov ntev ntawm kev teeb tsa. Kuj xyuas radial thiab axial loads, ambient kub, thiab txhua yam yuav tsum tau nres. Cov qauv xaiv yuav tsum ua kom tau raws li ob qho tib si nws cov kev ntsuas thiab thermal.

Q: Puas yog worm gear motors tus kheej - xauv?

A: Tsis tas li. Rov qab- tus cwj pwm tsav tsheb nyob ntawm lub gearbox tsim thiab kev ua haujlwm. Iav piv ib leeg tsis tsim kom muaj kev tuav ruaj ntseg. Qhov chaw thauj khoom txav tuaj yeem tsim qhov kev pheej hmoo ntawm kev nyab xeeb, lees paub tus qauv cov lus qhia tshwj xeeb thiab ntsuas seb puas yuav tsum tau nres ntxiv.

Q: Puas tuaj yeem ua kom lub cev muaj zog ua haujlwm tsis tu ncua?

A: Kev ua haujlwm tsis tu ncua yog nyob ntawm qhov ntsuas lub cev muaj zog, lub cev muaj peev xwm thermal, kev thauj khoom, ceev, qhov kub thiab txias, lubrication, thiab mounting tej yam kev mob. Paub meej tias qhov tso cai rau lub luag haujlwm ntsuas rau tus qauv xaiv ua ntej qhia nws rau kev pabcuam txuas ntxiv.

Q: Lub cev muaj zog thiab gearbox puas tuaj yeem hloov kho rau cov khoom siv OEM?

A: Qee cov qauv yuav txhawb nqa lwm qhov ntev, txuas txuas, hluav taws xob teeb tsa, lossis khoom siv ntxiv. Muaj nyob ntawm cov khoom series thiab yuav tsum tau lees paub thaum lub sij hawm kev tshuaj xyuas.

Q: Cov ntaub ntawv dab tsi xav tau rau kev hais lus?

A: Muab qhov yuav tsum tau tso zis ceev thiab torque, lub cev muaj zog voltage thiab theem, lub luag hauj lwm voj voog, daim ntawv thov, installation qhov ntev, ib puag ncig tej yam kev mob, thiab kwv yees kom muaj nuj nqis. Cov duab kos uas twb muaj lawm lossis tus lej siv tus lej tuaj yeem pab qhia meej txog qhov yuav tsum tau ua.

Thov ib daim Quote

Txhawm rau txheeb xyuas qhov tsim nyog worm gear motor, thov muab cov ntaub ntawv hauv qab no:
Yuav tsum tau tso zis ceev:Target RPM los yog xav tau iav piv.
Yuav Tsum Tau Txais Torque:Nruam torque thiab, qhov twg siv, ncov lossis pib torque.
Motor Power Supply:Voltage, theem, zaus, thiab nyiam lub cev muaj zog hom.
Lub luag haujlwm Cycle thiab Daim Ntawv Thov:Lub sijhawm ua haujlwm, pib- nres zaus, cov yam ntxwv thauj khoom, thiab cov khoom siv tsav.
Installation Requirements:Mounting qhov ntev, ncej cov ntsiab lus, muaj qhov chaw, thiab cov qauv siv uas twb muaj lawm.
Kev ua haujlwm ib puag ncig:Ambient kub, plua plav, noo noo, thiab yuav tsum tau tiv thaiv ingress.
Kwv yees Quantity:Cov qauv xav tau, thawj qhov kev txiav txim kom muaj nuj nqis, thiab kwv yees qhov xav tau txhua xyoo.
Xa cov ntsiab lus no nrog rau cov duab kos lossis cov lus qhia tshwj xeeb rau kev tshuaj xyuas. Tus qauv tsim nyog, muaj kev teeb tsa, CAD cov ntaub ntawv, tus nqi, thiab lub sijhawm ua haujlwm yuav tsum tau lees paub tiv thaiv cov khoom lag luam tiag tiag ua ntej xaj xaj.
